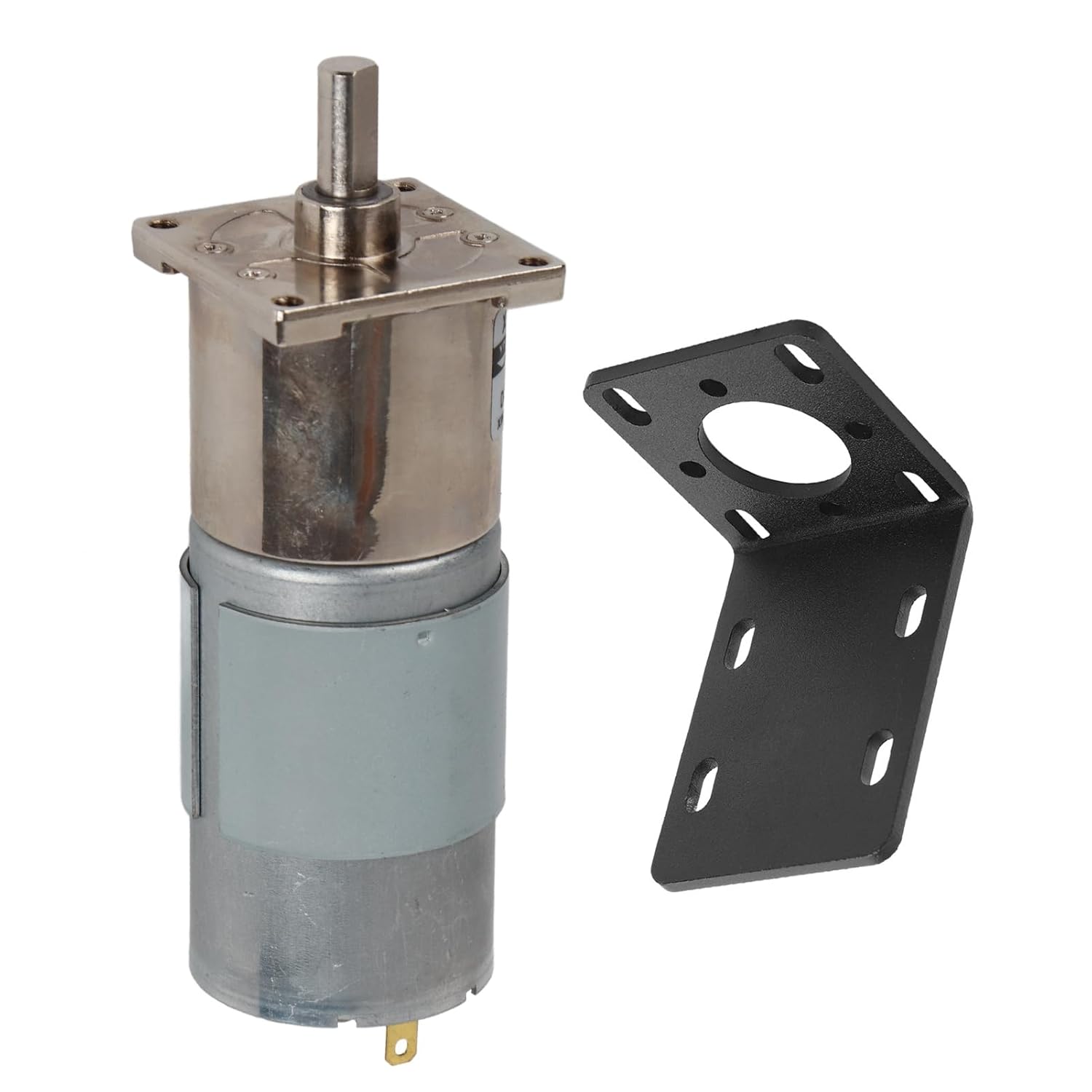

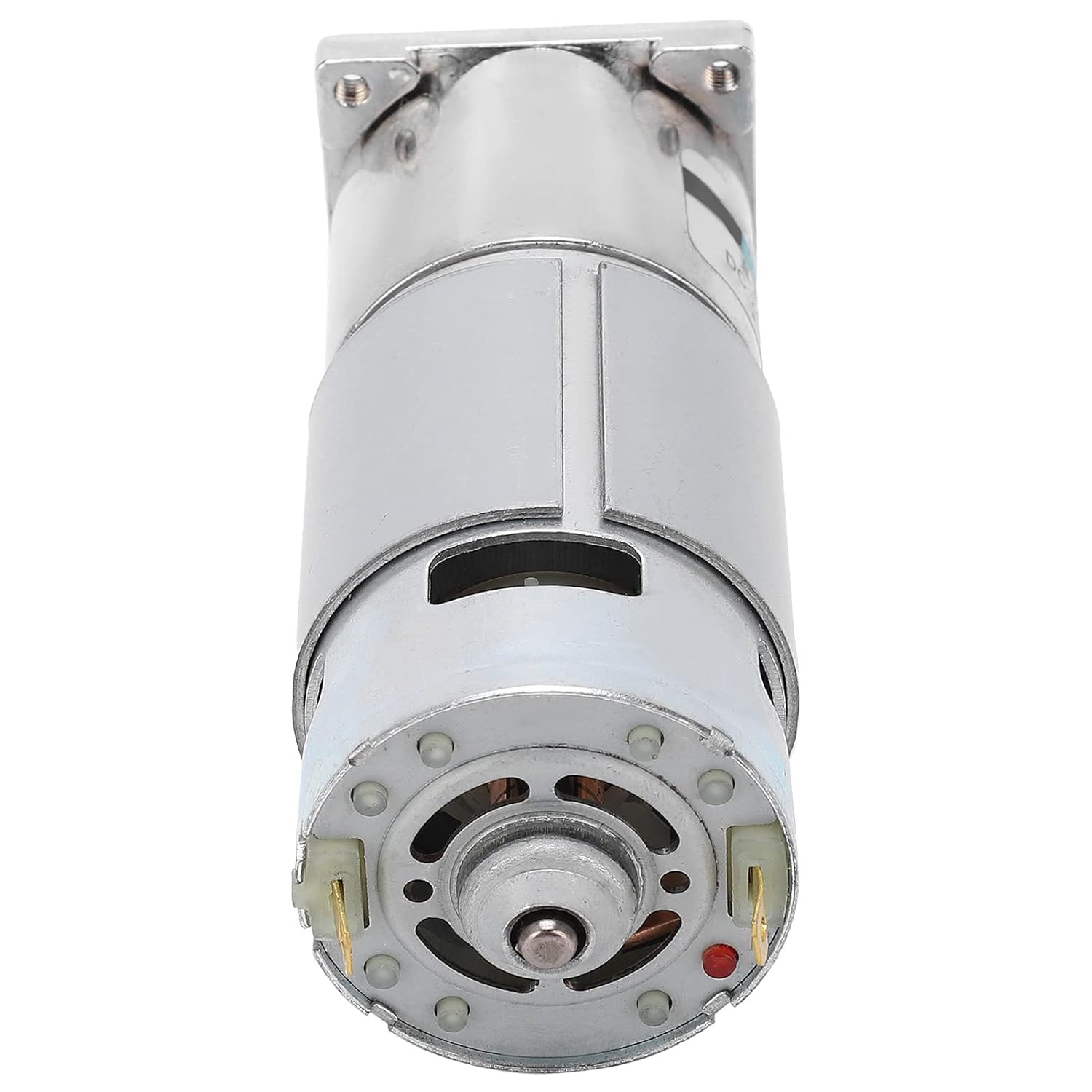

XD42GA755 DC Gear Motor - 24V DC 30 RPM Permanent Magnet Unit with All Metal Gears and Pure Copper Coils - CW CCW Rotation with 3A Overcurrent Protection for Industrial Machinery (10rpm/min)

Item Type: DC Gear MotorModel: XD-42GA755Material: CopperOutput Shaft Size: Approx. 8 x 20mm / 0.3 x 0.8inInsulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20MΩInsulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for one minute, and the abnormality is 1500V.Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance to measure the temperature rise of the coil below 70℃Insulation Class: Class B(130℃)Operating Environment Temperature: Motor: -10~+40℃ (no icing)Use Environment Humidity: 85% or less (no condensation)CW/CCW: YesSpeed Adjusted: YesModel Voltage（DC/V） No-Load Speed (rpm/min) No-Load Current(A) Load Speed (rpm/min) Loading Moment（kgf·cm） Reduction Ratio（1:00） Power（W） XD-42GA755 24V 10 0.25 9 45.84 500 25 20 0.25 18 22.92 200 25 30 0.25 28 15.28 142 25 50 0.25 45 9.17 100 25 Notes: 1 Overload and Locked Rotor: When the motor is running, it generates heat due to the energy conversion that occurs inside the coil and the iron core, and the temperature gradually rises. The load is within the rated range, and the heat generation and heat dissipation are balanced, and the coil of the motor will not be burnt. However, it will cause heat under overload and locked-rotor conditions. When the running time is too long, the insulating film on the enameled wire of the coil is dissolved, causing a short circuit between the enameled wires and burning the motor.2 When Running at Low Speed: For DC motors, carbon brushes are generally used. The rotating commutator rubs

• Electrical Specifications: The XD42GA755 unit operates on 24V DC with a rated speed of 30 rpm and supports both CW CCW rotation for versatile directional control.
• All Metal Gear Construction: Internal mechanisms utilize all metal gears and high temperature grease to maintain stable operation with low friction and reduced noise levels.
• Pure Copper Windings: Both the stator and rotor feature pure copper coils to increase conductivity and deceleration resistance while maximizing torque performance.
• Integrated Current Protection: An automatic power cutoff function engages when current levels reach 3A to protect internal components and ensure operational safety.
• Broad Industrial Application: This component is suitable for use in textile machinery, processing equipment, automatic packaging machines, and smart door locks.
